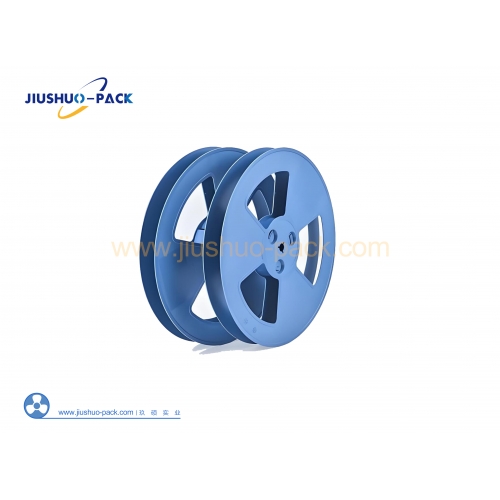

Carrier tape reels: Connector carrier tape reels with regular blue, blue eco-friendly, black anti-static, and heat-resistant. (7-inch, 13-inch, 15-inch).
Outer diameter: 7 inches (178mm), 13 inch reel (330mm); 15 inch reel (380mm); 19 inch reel (480mm); 22 inch reel (560mm)
Standard width: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm, 104mm
Inner shaft core specifications: 80mm, 100mm, 150mm, 180mm
Colors: blue, black, white, etc. (colors can be matched according to customer requirements)
Material: HIPS
Types of: rotary, snap on, integrated snap on Assemble with simple twisting motion, requiring no gluing or fasteners
Environment temperature: 20℃-30℃ relative humidity: (50%±10%）
Shelf life: 2 year
