Cover Tape

Cover tape refers to a ribbon product used in the field of electronic packaging, which is combined with a carrier tape to
Use. The cover tape is usually made of polyester or polypropylene film as the base layer and is composite or coated with different functional layers (Anti static layer, adhesive layer, etc.) can be sealed on the surface of the carrier tape under external force or heating, forming Closed space to protect electronic components in the carrier pocket.
The cover tape is mainly used in the electronic component mounting industry. It is used in conjunction with a carrier belt to integrate resistors, capacitors,
Transistors, diodes, and other electronic components are carried and stored in the pocket of the carrier belt, and the cover belt is sealed on the carrier belt to form a A closed packaging is formed above the pocket to protect electronic components from contamination during transportation Damage. During the installation of electronic components, the cover tape is peeled off, and the automatic installation device passes through the index hole of the carrier tape Precise positioning, remove the components held in the pocket in sequence, and place them on the integrated circuit board for installation On the PCB board

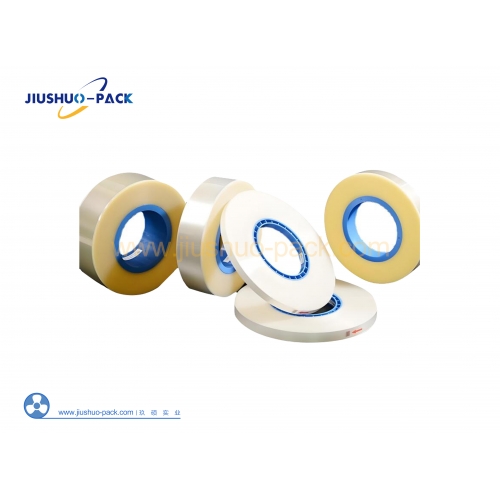

Heat Cover Tape for Embossing Carrier Tape Sealing

Cover tape refers to a ribbon product used in the field of electronic packaging, which is combined with a carrier tape to
Use. The cover tape is usually made of polyester or polypropylene film as the base layer and is composite or coated with different functional layers (Anti static layer, adhesive layer, etc.) can be sealed on the surface of the carrier tape under external force or heating, forming Closed space to protect electronic components in the carrier pocket.

•Cover Tape width: 5.3, 9.3, 13.3, 21.3, 25.5, 37.5, 49.5, 65.5, 81.5

•Cover Tape Length:  200M/R, 300M/R, 400M/R, 480M/R, 500M/R

•Cover Tape size and peer performance, compliant with current EIA-481 standards

•Transparent, static distinct polycarbonate with Pressure sensitive cover tape and Heat Activated cover tape

•The adhesive is very stable and provides good protection for the product

•Compared to materials such as polyether, the shrinkage rate is lower and can provide a stable pocket size after molding

•Equipped with anti-static function

•Customized designs and sizes can also be provided according to your requirements

•Compatible with pressure sensitive adhesive tape and thermal activated adhesive tape with good sealing and Peeling performance

    Cover tape refers to a ribbon product used in the field of electronic packaging, which is combined with a carrier tape to
    Use. The cover tape is usually made of polyester or polypropylene film as the base layer and is composite or coated with different functional layers (Anti static layer, adhesive layer, etc.) can be sealed on the surface of the carrier tape under external force or heating, forming Closed space to protect electronic components in the carrier pocket.

    •Cover Tape width: 5.3, 9.3, 13.3, 21.3, 25.5, 37.5, 49.5, 65.5, 81.5

    •Cover Tape Length:  200M/R, 300M/R, 400M/R, 480M/R, 500M/R

    •Cover Tape size and peer performance, compliant with current EIA-481 standards

    •Transparent, static distinct polycarbonate with Pressure sensitive cover tape and Heat Activated cover tape

    •The adhesive is very stable and provides good protection for the product

    •Compared to materials such as polyether, the shrinkage rate is lower and can provide a stable pocket size after molding

    •Equipped with anti-static function

    •Customized designs and sizes can also be provided according to your requirements

    •Compatible with pressure sensitive adhesive tape and thermal activated adhesive tape with good sealing and Peeling performance

    File Name : Format: Size: Download:

Related products

Emboss Carrier Tape And Cover Tape  produced by the company, related products are in line with ROHS environmental standards, EIA-481-D standard.
