Cover Tape

Cover tape refers to a ribbon product used in the field of electronic packaging, which is combined with a carrier tape to
Use. The cover tape is usually made of polyester or polypropylene film as the base layer and is composite or coated with different functional layers (Anti static layer, adhesive layer, etc.) can be sealed on the surface of the carrier tape under external force or heating, forming Closed space to protect electronic components in the carrier pocket.
The cover tape is mainly used in the electronic component mounting industry. It is used in conjunction with a carrier belt to integrate resistors, capacitors,
Transistors, diodes, and other electronic components are carried and stored in the pocket of the carrier belt, and the cover belt is sealed on the carrier belt to form a A closed packaging is formed above the pocket to protect electronic components from contamination during transportation Damage. During the installation of electronic components, the cover tape is peeled off, and the automatic installation device passes through the index hole of the carrier tape Precise positioning, remove the components held in the pocket in sequence, and place them on the integrated circuit board for installation On the PCB board

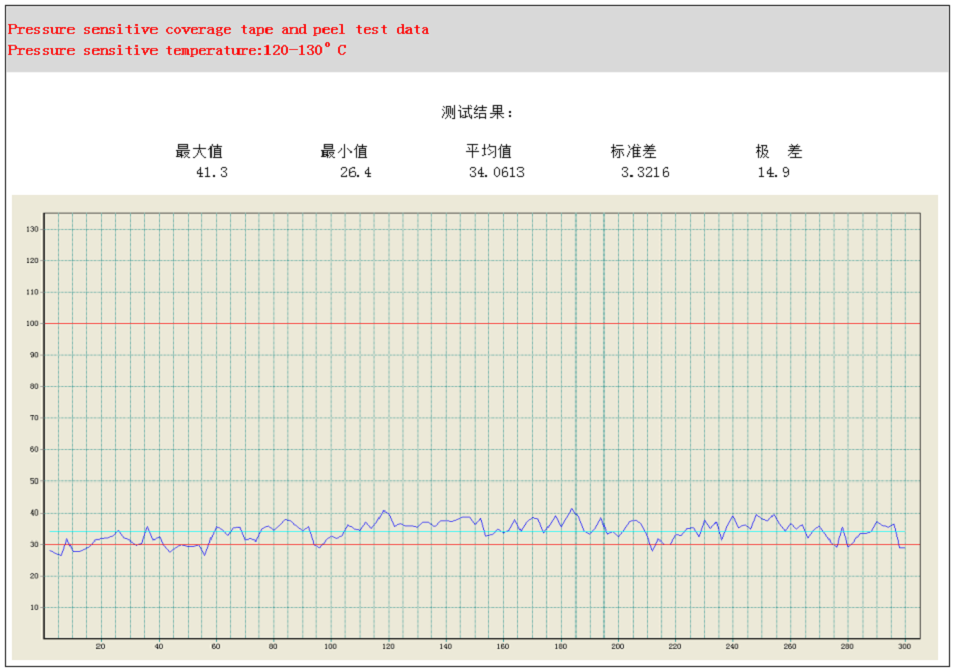

Pressure sensitive cover tape

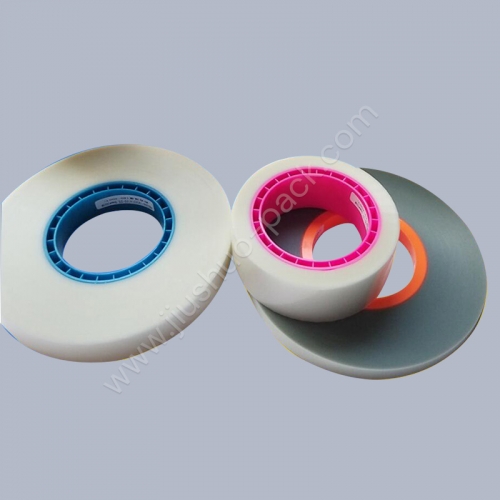

cover tape

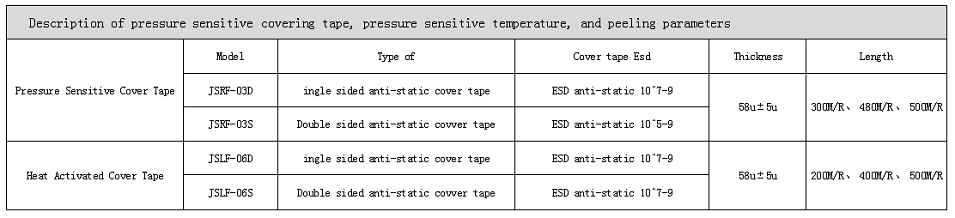

Cover tape and carrier tape must match the corresponding width in order to be used. The width of the carrier tape is different, and the cover tape is also divided into different widths. Common widths include 5.3 mm, 9.3 mm, 13.3mm, 21.3mm, 25.5 mm, 37.5mm, etc. Cover straps can be divided into two types: pressure sensitive cover straps (JSRF) and activated cover straps (JSLF).

     Pressure sensitive cover tape (JSRF), which has no adhesive at room temperature and only becomes sticky after heating, is sealed by a sealing machine by melting and pressing the hot melt adhesive of the cover tape onto the surface of the carrier tape. There are double-sided anti-static cover tapes and also single-sided anti-static cover tapes.



    Heat Activated Cover Tape(JSLF) has a 1.5mm adhesive layer on both edges of the cover strip, but there is no adhesive layer in the middle of the cover strip, which can be used without heating, It applies continuous pressure through a pressure roller, causing the pressure s



    Performance of Cover Tape

    •Transparent, static distinct polycarbonate with Pressure sensitive cover tape and Heat Activated cover tape

    •The adhesive is very stable and provides good protection for the product

    •Compared to materials such as polyether, the shrinkage rate is lower and can provide a stable pocket size after molding

    •Equipped with anti static function

    •Customized designs and sizes can also be provided according to your requirements

    •Compatible with pressure sensitive adhesive tape and thermal activated adhesive tape with good sealing and Peeling performance

    •Cover Tape width: 5.4mm-118m

    •Cover TapeLength: 200-500 meters

    •Cover Tape size and peer performance, compliant with current EIA-481 standards

    Cover tape Timelines:

    1. Sampling time: 2days for opening and sampling

    2. Delivery cycle: Delivery can be made within 4working days after receiving the official order

    3. Provide free samples

    Please send us an email with your request、 sales05@zaidaiw.com

Related products

All the carrier belts produced by the company, related products are in line with ROHS environmental standards, EIA-481-D standard.
