キャリアテープ

エンボスキャリアテープ&リール
一般的に使用されるキャリアテープ原料の厚さは0.25 mmから1.0 mmの範囲です
キャリアテープ幅は8 mm-108mmの範囲であり、k0の深さは40 mmに達することができます
また、顧客のためにカスタマイズすることができ、非標準キャリアテープ
コンベアベルトは、機械のピッキングと配置による自動処理のための部品の包装、保護、表示に使用されます。
マキシムのキャリアは、すべてのデバイスが最高の物理的およびesd保護を受けるように設計されています。
原料から完成品までキャリアテープを製造する能力を持っており、あらゆるお客様に最適なローコストキャリアテープを製造することができます。

Custom Embossed Carrier Tape



Embossed Carrier Tape Of Production Control Process

1. Incoming Material Inspection (IQC) : Test the purchased carrier tape raw materials (plastic particles, base paper) to confirm the material composition and environmental friendliness (such as compliance with RoHS and REACH).

2. Process Inspection (IPQC) : Sampling inspection during the production process, with a focus on monitoring the dimensional stability and appearance defects of the extrusion/stamping process.

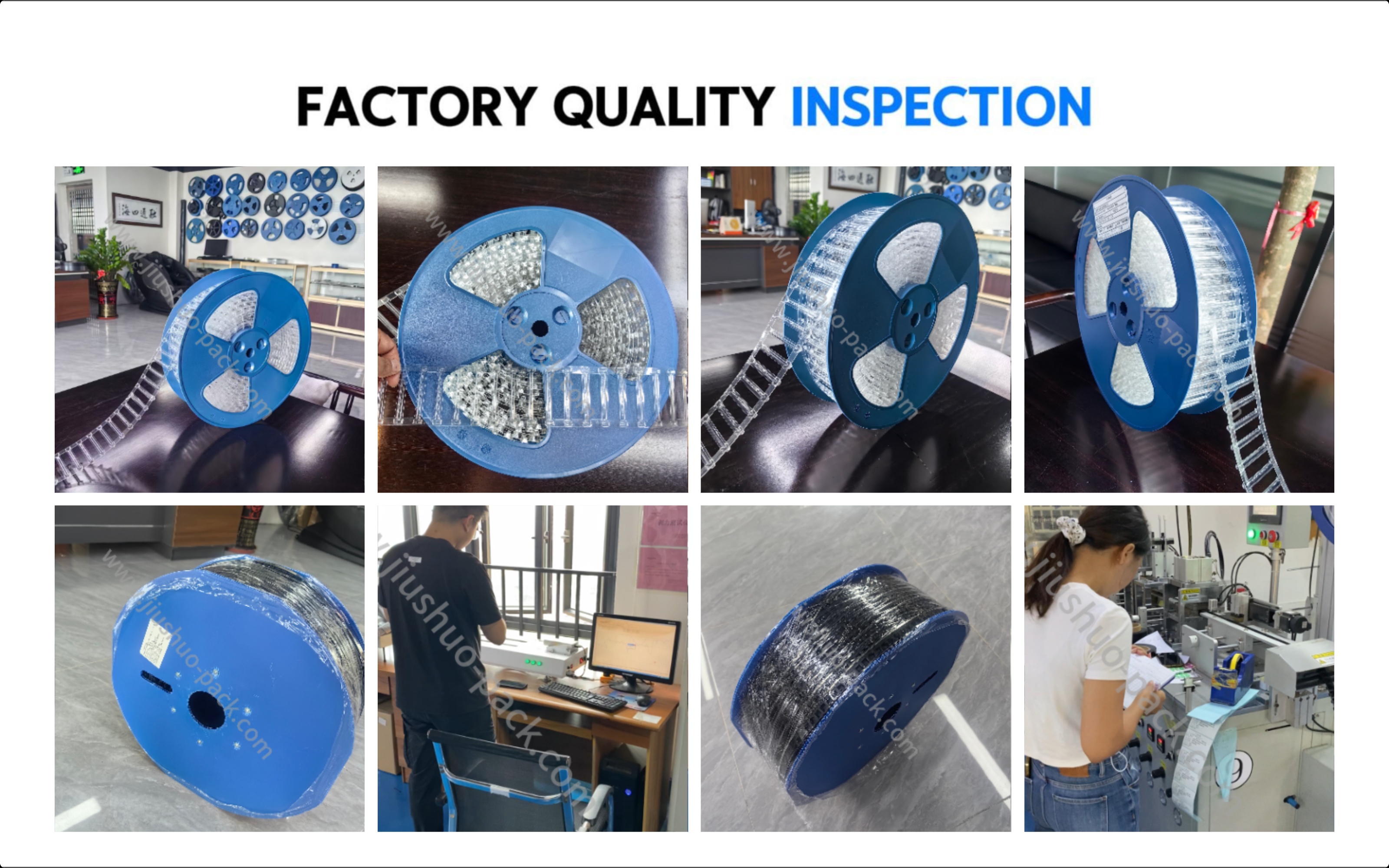

3. Finished Product Inspection (FQC) : Full inspection or sampling inspection of the size, appearance and physical properties of the finished carrier tape. Non-conforming products should be isolated and treated.

4. Batch traceability: Each batch of carrier tape is marked with the production batch, date, and inspection result, facilitating the traceability of subsequent quality issues.
Physical performance test of the sealing between the carrier tape and the Cover tape

- Tensile strength/elongation at break: Ensure the tear resistance of the carrier tape, suitable for high-speed pull tapes of automatic packaging machines;

- Thermal stability: Plastic carrier tapes need to be tested for dimensional change rate at high temperatures (such as 60℃ to 80℃) to prevent deformation after packaging.

- Peel force: After adhering to the cover tape, the peel force should be within the specified range (such as 50g to 200g).  If it is too large, it will be difficult to open the cover;  if it is too small, it is prone to material leakage.

- Packaging compatibility:

- The adhesion strength with the cover tape (such as heat-sealing cover tape, pressure-sensitive cover tape), and test whether the heat-sealing temperature/pressure is matched.

The smoothness of the carrier tape when passing through the surface mount machine track, without any jamming or offset issues.
    Carrier tapes: IC-specific carrier tapes, transistor-specific carrier tapes, SMD LED carrier tapes, SMD inductor carrier tapes, comprehensive SMD carrier tapes, SMD capacitor carrier tapes, SMT connector carrier tapes, PS carrier tapes.


    Materials: PS, PET, PC, ABS ESD anti static10 ^ 6-11

    Width:  8, 12, 16, 24, 32, 44, 56, 72, 88, 104, 120mm

    Thickness: 0.25, 0.3, 0.35, 0.40, 0.45, 0.50, 0.60, 0.70, 0.80, 1.0mm

    KO depth: 1-40MM

    Color: Black, white transparent

    Length: 1-1000M/R   Other lengths can also be customized

    Carrier tape meets current EIA-481 and EIA-541 standard

関連製品

Emboss Carrier Tape And Cover Tape  produced by the company, related products are in line with ROHS environmental standards, EIA-481-D standard.
