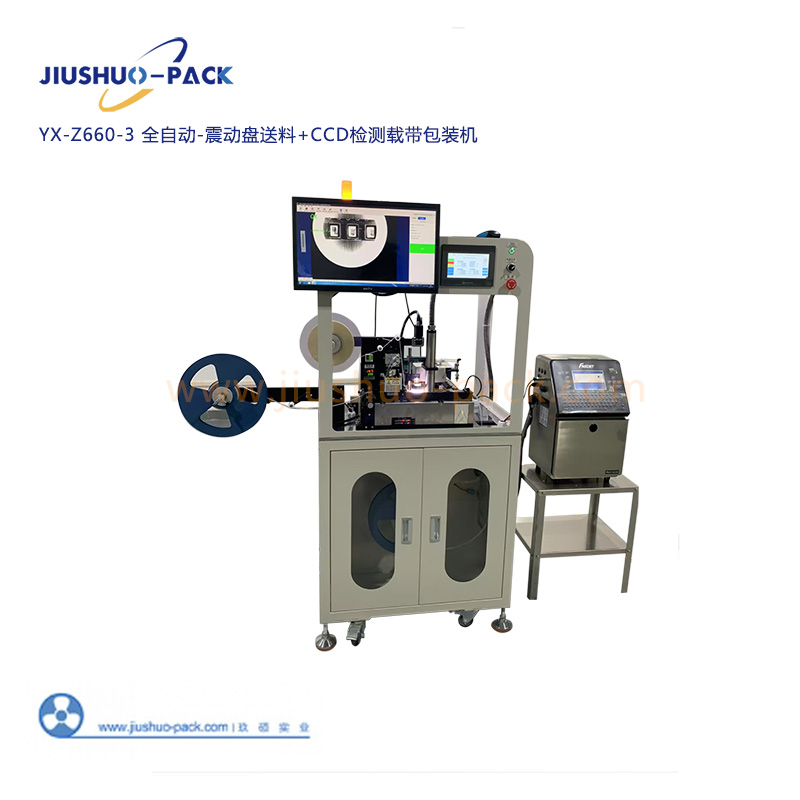

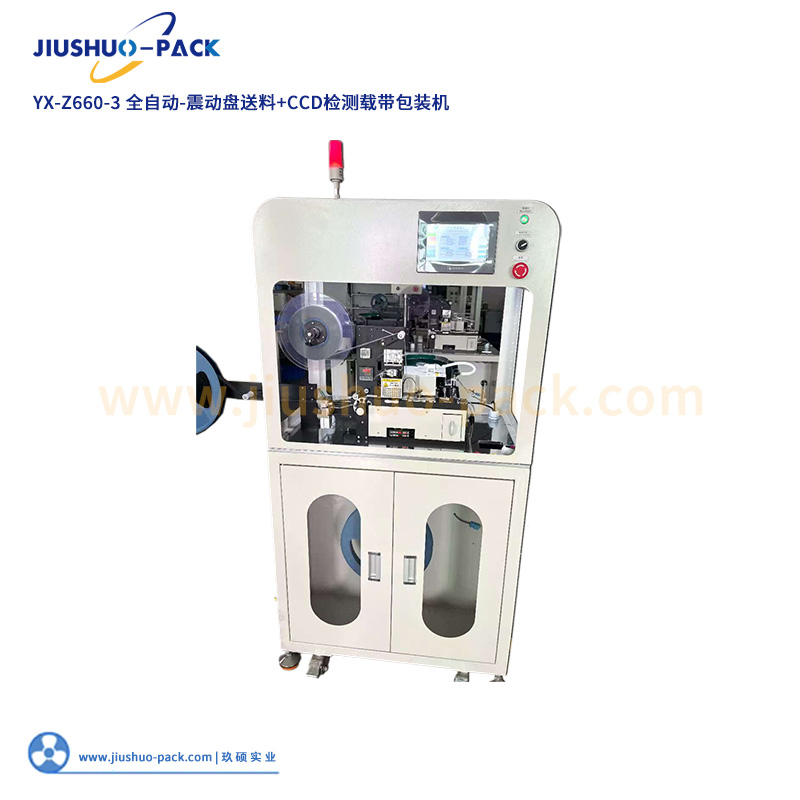

YX-Z660-3
Fully Automatic - Vibrating Disc Feeding +CCD Detection Carrier Tape Packaging Machine
Carrier tape packaging machine can be customized according to customer product requirements、Creating
a Carrier tape packaging machine will take approximately 20-30 working days
Suitable for various packaging products such as resistors, capacitors, fuses, connectors, crystal oscillators,silicon microphones, shielding covers, nickel sheets, hardware stamping parts, touch switches, 3C SMT
Components, Etc.
1. Using a vibrating disc for feeding, it can physically identify the front, back, and direction of the product,
achieving automatic feeding function
2. Using a single swing arm robotic arm to pick up and place products, it can quickly pick up and place
products,
3. Strong compatibility, according to different products, switching to corresponding specifications can
complete production work.
4. Fully functional, with parameter settings, capable of setting the number of front and rear empty spaces,
packaging quantity, carrier tape, cover tape,length, and remaining alarm numbers
5. The equipment is equipped with a CCD vision inspection function, which can detect the direction, minority, and missing installation of the product, and also recognize and scan the QR code on the product surface
Specifications And Technical Parameters:
Appearance: Approximately 1500mm in length/700mm in width/1450mm in height, weighing 200kg
Power system: single-phase AC220V, 50Hz: 5.0kg/c ㎡ ≤ air pressure ≤ 9.0kg/cm
Rated power: 4.6KW
Supply system: Suitable for EIA-481A standard carrier tape and matching upper cover tape
carrier tape specification: 12 width ≤56m depth ≤ 40mm
Temperature control system: Single head adjustable PID temperature controller, temperature control should
be between 120 ℃ -200 ℃Dongguan Jiushuo Industrial Co., Limited
Ribbon speed: 5000-10000pcs/h, limited by component specifications
Counting function: internal pulse counting in the system
Suture form: self-adhesive/hot pressing
Collecting and discharging trays: 13 inch, 15 inch, 22 inch, 27 inch rubber or paper trays
