Why High-Speed SMT Exposes Carrier Tape Design Weaknesses

High-speed SMT assembly is not a faster version of low-speed placement—it is a fundamentally different physical environment. As feeder speeds increase, acceleration and deceleration profiles introduce non-linear forces that were negligible at lower speeds. Carrier tape designs that appear stable under slow, gravity-dominated conditions are suddenly subjected to rapid directional changes, impulse loads, and vibration-driven movement.

At this point, static assumptions break down. Pocket geometry that merely “holds” a component is no longer enough once dynamic forces begin to dominate component behavior. Small tolerances that once provided comfortable design margins are quickly consumed by speed, leaving no buffer for material recovery, pocket compliance, or timing variation.

This is why many carrier tape feeding problems only emerge after line speed increases. High-speed SMT removes hidden safety margins and exposes how the tape actually behaves as part of a moving system—not how it looks in a static inspection. Understanding this shift is the foundation for effective failure analysis in modern SMT environments.

Internal reference: Tape and Reel Packaging for SMT Components
Internal reference: Carrier Tape Design Guide

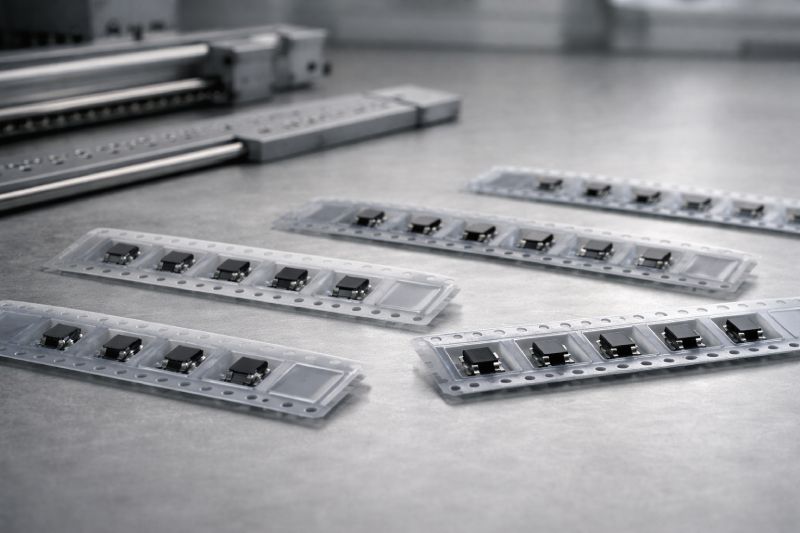

Why Carrier Tape Failures Are System-Level Problems

Carrier tape failures in high-speed SMT are rarely caused by a single flawed dimension or isolated design choice. Pitch errors, pocket geometry issues, material selection, and feeder performance are often blamed individually—but this framing misses the real failure mechanism. At high speed, these elements stop behaving independently and begin interacting as a tightly coupled system.

A pocket that performs well on its own may fail once pitch variation alters indexing timing. A material with acceptable stiffness may become unstable when feeder acceleration excites elastic recovery. Even a feeder operating within its tolerance range can amplify small tape deviations into repeatable misfeeds. None of these factors alone explains the failure; it is their interaction that creates instability.

This is why high-speed SMT failures are almost always systemic. Treating them as single-parameter problems leads to temporary fixes at best and recurring failures at worst. Effective analysis requires viewing the carrier tape, component, cover tape, and feeder as one dynamic system—where behavior emerges from interaction, not from any single design variable.

Internal reference: Carrier Tape and Reel Packaging Explained

How Pocket Design Fails at High SMT Speeds

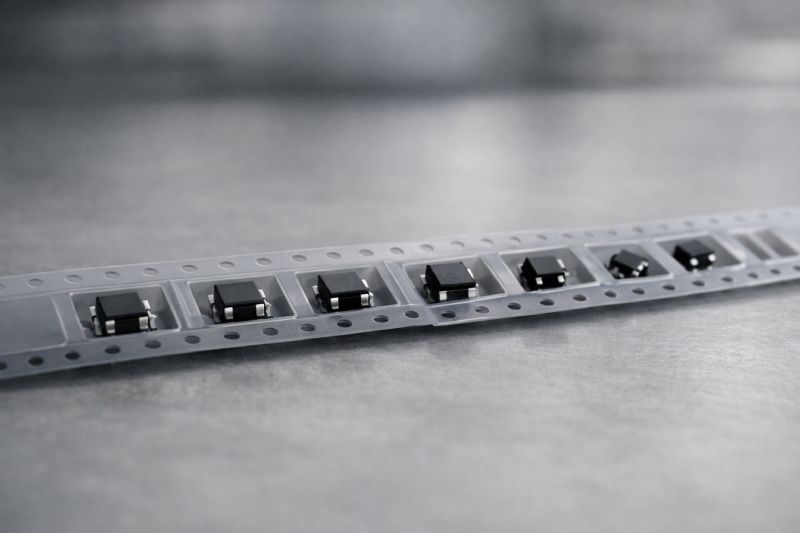

At high SMT speeds, pocket design failures are driven by dynamic behavior rather than geometric mismatch. A pocket can “fit” a component perfectly in a static sense and still fail once acceleration forces dominate motion. As feeder speed increases, lateral and vertical forces act on the component simultaneously, replacing gravity-based retention with inertia-driven movement.

One common failure mechanism is insufficient lateral constraint. During rapid acceleration, components momentarily unload against one pocket wall, then rebound toward the opposite side. If the pocket does not actively control this movement, micro-shifts accumulate and manifest as rotation, skew, or mis-pick at the nozzle. Pocket depth alone does not solve this problem; deeper pockets can actually increase bounce when vertical acceleration exceeds the component’s settling response.

Another frequent issue is release timing mismatch. High-speed feeders rely on precise synchronization between pocket position, cover tape peel, and pickup timing. If the pocket geometry delays or accelerates component release relative to feeder indexing, the component may lift, tilt, or shift at the exact moment of placement.

The critical distinction is this: pocket “fit” does not equal pocket “control.” In high-speed SMT, the pocket must manage component motion throughout acceleration, transport, and release. Designs based on static retention assumptions fail because dynamic movement replaces gravity as the dominant force.

Internal reference: LED Carrier Tape

Why Pitch Accuracy Alone Is Not Enough in High-Speed SMT

In high-speed SMT, pitch accuracy is often treated as the primary indicator of carrier tape quality—but this assumption breaks down once feeding speed increases. Nominal pitch accuracy describes how closely the tape matches its intended spacing under static or slow-moving conditions. What actually governs performance at speed, however, is dynamic pitch stability.

As feeder indexing accelerates, small pitch deviations no longer remain isolated. They accumulate across multiple pockets, and the feeder mechanism amplifies these deviations during rapid advance-and-stop cycles. A tape that measures “in spec” at rest can exhibit phase mismatch once inertia, material compliance, and recovery lag enter the system. The result is not a visible pitch error, but a timing error—where pocket position and pickup timing drift out of alignment.

This effect becomes more pronounced at higher speeds because the system has less time to self-correct. Elastic deformation, micro-slippage at the sprocket holes, and feeder tolerance stacking all contribute to instability that static pitch measurements cannot predict.

In other words, accurate pitch does not guarantee stable pitch. High-speed SMT exposes whether the tape can maintain consistent pocket-to-index alignment under dynamic loading. Designs that focus solely on nominal accuracy miss the real failure mode: loss of pitch stability during continuous high-speed feeding.

Internal reference: Carrier Tape Pitch Explained

How Carrier Tape Materials Fail at High SMT Speeds

Material-related failures in high-speed SMT are often misunderstood as issues of material quality or cost. In reality, these failures occur because material behavior changes under dynamic loading. At elevated feeding speeds, carrier tape materials are pushed beyond the conditions where their static properties are relevant. What matters is how they deform, recover, and interact with feeder motion over time.

With PS carrier tape, the primary failure mechanism is exceeding the material’s effective deformation window. Under rapid acceleration, localized stress builds faster than the material can relax, leading to permanent distortion around pockets and sprocket holes. This distortion may be invisible at rest but becomes critical during repeated indexing cycles.

PET behaves differently. Its strength and dimensional consistency are generally sufficient, but recovery lag becomes the limiting factor. After deformation during feeding, PET may not return to its original shape quickly enough before the next index cycle. At high speeds, this delay accumulates, causing subtle misalignment and unstable pocket positioning.

PC offers a clear stability advantage in high-speed environments due to its resistance to deformation and faster elastic response. However, this does not make it immune to failure. When acceleration profiles exceed what the system was designed for, even PC can transmit higher forces directly to the component, shifting the failure from material distortion to component control issues.

The key insight is that material failure in high-speed SMT is not about weakness—it is about behavior under time-compressed conditions. Selecting materials based on static properties ignores the dynamic reality of modern SMT lines.

Internal reference: PS Carrier Tape
Internal reference: PET Carrier Tape
Internal reference: PC Carrier Tape

Why Cover Tape Compatibility Becomes Critical at High Speed

At low SMT speeds, cover tape behavior is often treated as a secondary concern. Peel force appears consistent, release timing feels forgiving, and minor variation rarely causes visible issues. High-speed SMT removes that tolerance entirely. Once feeding speed increases, cover tape interaction becomes a dynamic load applied directly to the carrier tape and the component at the worst possible moment—just before pickup.

Peel force variation is no longer a static value; it becomes a fluctuating force that changes with peel angle, speed, and material response. At high speed, even small variations translate into impulse loads that can lift, tilt, or laterally shift components inside the pocket. These movements often occur milliseconds before nozzle engagement, making them difficult to diagnose after failure.

Release timing errors compound the problem. If the cover tape releases too early, the component may jump or migrate under acceleration. If it releases too late, the nozzle encounters resistance or inconsistent pickup height. In both cases, the symptom appears identical to a carrier tape defect, even though the root cause lies in cover tape behavior.

This leads to a common misdiagnosis: cover tape problems are often mistaken for carrier tape problems. In high-speed SMT, compatibility between cover tape, carrier tape material, pocket geometry, and feeder peel mechanics is critical. Ignoring this interaction turns an otherwise stable tape design into a recurring source of feeding failures.

Internal reference: Cover Tape for Carrier Tape

How Indexing Errors Amplify at High SMT Speeds

In high-speed SMT, indexing accuracy is no longer a linear concern. Small deviations that remain harmless at low speed are amplified as feeder acceleration increases. The D1 sprocket hole plays a critical role in this process, because it defines how motion is transferred from the feeder to the carrier tape during each index cycle.

At elevated speeds, even micro-level D1 hole deviation introduces timing and alignment errors that grow with each advance-and-stop motion. The feeder does not simply follow the tape; it actively drives it. When hole position, shape, or consistency varies, the feeder’s indexing mechanism converts these small inconsistencies into repeatable misalignment at the pickup point. What begins as a barely measurable offset becomes a visible feeding error.

This effect is intensified by the mismatch between feeder tolerance and tape tolerance. Feeders are designed to operate within defined mechanical limits, but they assume stable engagement with the tape. When tape variation approaches those limits, the feeder compensates in ways that magnify, rather than correct, the error—especially under rapid acceleration.

The critical insight is that speed multiplies error. In high-speed SMT, indexing is not just about accuracy at a single point; it is about how deviations propagate through continuous motion. D1 hole consistency that seems acceptable in static inspection can become the dominant failure trigger once speed increases.

Internal reference: Carrier Tape D1 Hole Explained

Why Low-Speed Validation Does Not Guarantee High-Speed Success

Many carrier tape designs pass low-speed validation with no visible issues, only to fail once production ramps up. This is not a contradiction—it is a limitation of how validation is commonly performed. Low-speed testing emphasizes static stability and basic feeding continuity, while high-speed SMT exposes dynamic behavior that these tests never evaluate.

At reduced speeds, acceleration profiles are mild, allowing components to settle naturally into pockets. Material deformation has time to recover, and minor timing mismatches are absorbed by available design margins. Under these conditions, gravity dominates component behavior, masking the effects of inertia, vibration, and elastic response. The design appears robust, but the system is simply operating below its failure threshold.

Prototype testing further obscures risk. Short production runs hide cumulative effects such as gradual pitch drift, repeated elastic loading, and progressive misalignment. Without sustained high-speed operation, these behaviors never have a chance to emerge.

Most critically, low-speed validation does not replicate real acceleration profiles. High-speed SMT introduces rapid start-stop cycles that fundamentally change how the tape, component, and feeder interact. Passing a low-speed test only proves that the design works in a different physical regime. It does not predict performance once speed removes the safety margins.

When Carrier Tape Designs Are Most Likely to Fail

Carrier tape failures in high-speed SMT are not random events; they occur when specific engineering conditions push the system beyond its stable operating behavior. These conditions are often present long before failure is observed, but they only become critical once speed amplifies their effects.

Failures are especially likely when SMT speed crosses the point where dynamic forces dominate over gravity-based retention. At this threshold, any design that relies on passive holding—rather than active control—becomes unstable. Lightweight components are particularly vulnerable, as low mass allows acceleration forces to overcome pocket restraint more easily, increasing the risk of bounce, rotation, or premature release.

Another high-risk condition arises when pocket geometry assumes static settling. If the pocket depends on depth or simple wall contact to maintain orientation, it offers little resistance to rapid directional changes. Similarly, designs that ignore material recovery time are prone to cumulative misalignment. Each index cycle adds deformation faster than the tape can return to its original shape.

Finally, failures tend to appear when validation does not match real production behavior. If acceleration profiles, sustained run length, or cover tape interaction are not evaluated at target speed, instability is already built into the system. In high-speed SMT, failure is not caused by a single mistake—it is triggered when multiple marginal conditions align under speed-driven stress.

Engineering Principles to Prevent High-Speed SMT Failures

Preventing carrier tape failures in high-speed SMT does not start with tighter tolerances or incremental tweaks—it starts with a different design mindset. The first principle is to design for dynamic control, not static fit. A pocket that only matches component dimensions is insufficient; it must actively manage component motion during acceleration, transport, and release. Control, not containment, is the goal.

Material selection must also be based on behavior rather than cost or static properties. How a material deforms, recovers, and transmits force under rapid cycling matters far more than how it measures at rest. Choosing materials without considering time-dependent response builds instability into the system from the beginning.

Validation is another critical shift. Designs should be evaluated at target speed and under realistic acceleration profiles—not at reduced speeds that preserve artificial safety margins. High-speed behavior cannot be extrapolated from low-speed results; it must be observed directly. Short prototype runs are not enough to reveal cumulative effects that only emerge during sustained operation.

Finally, tape and reel must be treated as a system. Pocket geometry, pitch behavior, material response, cover tape interaction, and feeder mechanics are inseparable at high speed. Optimizing one element in isolation often destabilizes another. Reliable high-speed SMT performance comes from system-level design, where every element is engineered to work together under dynamic conditions.

Summary

High-speed SMT is a dynamic system, not a faster version of low-speed assembly. As speed increases, gravity-based assumptions collapse, design margins disappear, and interactions between tape, component, cover tape, and feeder dominate behavior. Carrier tape failures are not accidents—they are signals that a design is operating beyond the conditions it was engineered for.

To succeed at high speed, carrier tape design must evolve from static fit to dynamic control, from isolated parameters to system-level thinking, and from low-speed validation to real production conditions. When these principles are ignored, failure is predictable. When they are applied, high-speed SMT becomes stable, repeatable, and controllable.
