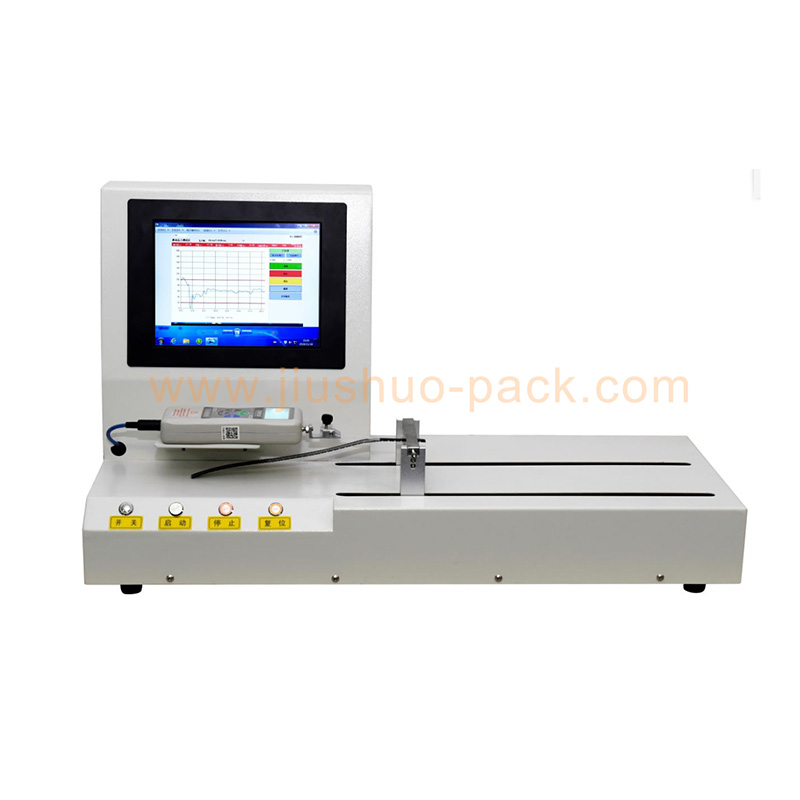

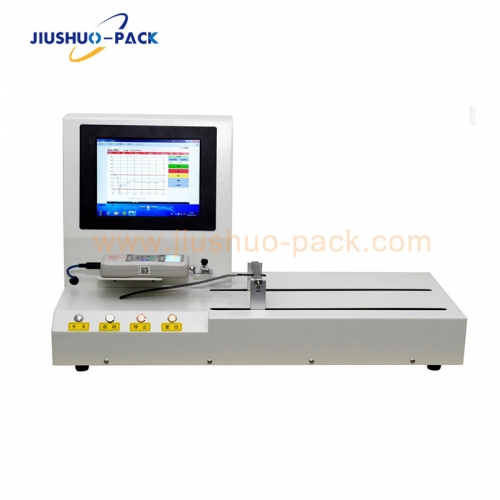

YX-LL019 Carrier Tape Peel Strength Tester
Main uses and scope of application:
This product is mainly used to test the sealing force of the carrier belt and the cover belt. According to the requirements of EIA-481, the sealing force of the carrier belt and the cover belt must be at a certain level.
Lower or higher than this tension range will cause a certain loss to the SMT process, so the pull during the braid process can be controlled through the test of this product Force size to meet SMT process requirements.
Inductor, transformer, connector, crystal oscillator, semiconductor, metal stamping sheet, LED, all kinds of JACK, IC, USB, energy inductor. After the SMD patch electronic parts of reed, switch, key, switch, charging pool, etc., are packaged, the cover tape of the package is stripped during SMT patch operationThe distance must be synchronized with the SMT patch speed and resistance in order to properly mount. Therefore, various SMT manufacturers have given various kinds of SMT parts bearing belt packaging cover belt strippingTechnical parameter requirements! For electronic parts manufacturers, the bearing belt packaging is only the first step, and whether the packaging meets the requirements of the patch factory is the most important. The top cover is strippedThe pull-out force tester is a test instrument for the peeling quality control of the cover band on the bearing belt package! The test report will be one of the inspection reports that must be provided at the time of shipment.
Peel strength tester features:
Designed according to the requirements of the EIA-481 standard for peel strength testingThe operating interface adopts industrial tablet, the software is simple and convenient to operate, and the test results cannot be modified, which has great credibility. Adopts screw module, effective stroke more than 400MM. Running without jitter, low sound, is a sign of high quality
The sample data can be read delay, the test results can be displayed in real time, the upper limit and lower limit of tension can be set, and the test results can be automatically judged and printed.

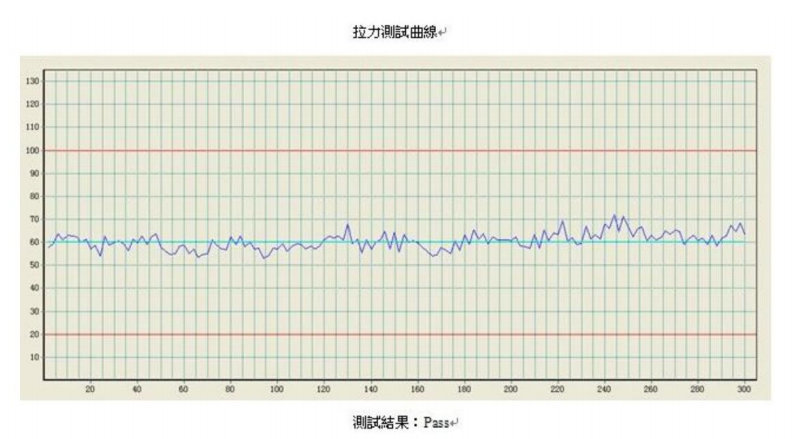

The computer is connected with the tension meter in a straight line, and the tension data is recorded at all times, and the data is presented on the screen in the form of a curve in time. The maximum value, minimum value, tensile range, average value, root mean square value, standard deviation, variance, etc. are automatically given to facilitate data statistics. This software is available in three languages for you to choose from: Simplified Chinese, Traditional Chinese and English. It can store data and establish historical database; It can print out electronic files in PDF format to facilitate the transfer of test reports.
