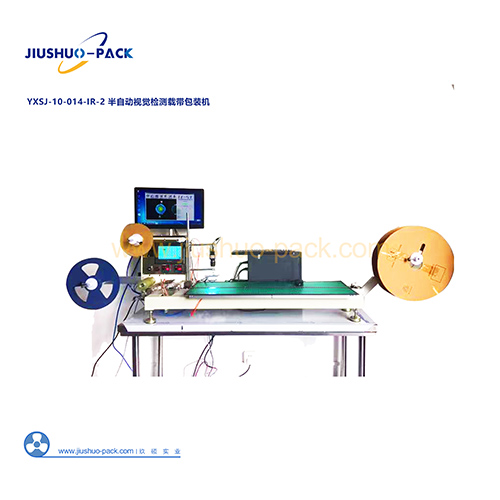

YXSJ-10-014-IR-2
Semi-Automatic Visual Inspection Carrier Tape Packaging Machine
1. The packaging operation is simple with a human-machine interface,and can be operated independently by a single person.
2. Packaging speed: 5000-8000pcs/hr, depending on the speed of manual placement of different components. The speed of packaging operation can be freely controlled.
3. Adjusting the width of packaging components with machine rails:It can be flexibly adjusted according to the width of the carrier tape.The conventional packaging width is 8-88mm,
4. Footpedal control for packaging belt sealing during operation; The operating speed is stable and uniform, and there is no occurrence of component breakage or ribbon slot phenomenon
5. This machine is suitable for cold sealing self-adhesive and hot pressing functions, and can be used for all SMD products and carrier tape packaging
6.It is necessary to manually put the product into the carrier tape,then activate the device switch, seal the carrier belt and the upper cover belt together
7.The equipment has the function of identifying product direction and missing installation. If an NG situation occurs, the equipment will automatically alarm and shut down
8. Working voltage 220V, 50Hz, power: 300w, suitable for air pressure of 3.0kg/cm
9. Body specifications and dimensions: L1300mm x W600mm x H500mm;
10. Weight 55kg
